Specifications
2.USB interface
3.Safe lock anti-thief,utra thin
4.Ipad appearance
5.with CE

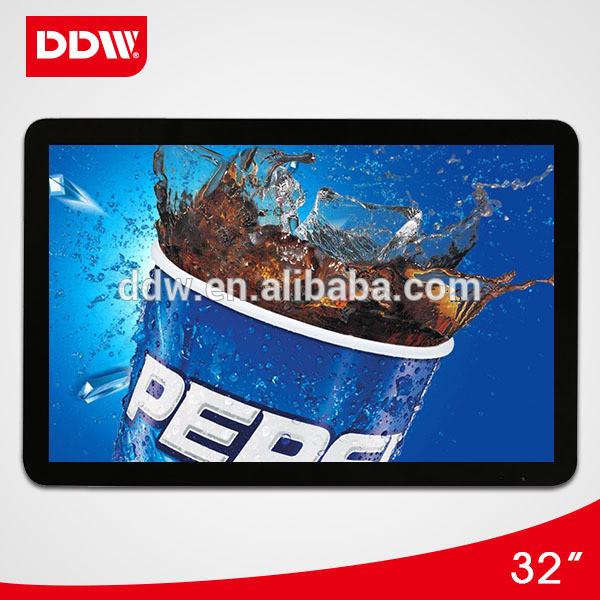

32 inch wall mount lcd advertising player
| Specifications | ||||||||||
| Model No. | DDW-AD3201LY | |||||||||
| Panel size | 32″TFT-LCD | |||||||||
| Display area(mm)/mode | 1044(W)×568(H) 16:9 | |||||||||
| Maximum resolution | 1366x768 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.51(H)×0.51(V) | |||||||||
| Brightness (nits) | 600 | |||||||||
| Contrast | 1500:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 8ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 1(BNC×3) | |||||||||
| Y,Pb,Pr/Y,Cb,Cr input | 1(BNC×3) | |||||||||
| S-video | 1(BNC×2) | |||||||||
| HDMI | 1 | |||||||||
| Composite video loop output | 1 | |||||||||
| L/R audio input | 1 ( RCA*2) | |||||||||
| L/R audio output | 1 ( RCA*2) | |||||||||
| Speaker | 2×5W(9Ω) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Remote controller | Special | |||||||||
| Ads input interfaces | ||||||||||
| USB | 1 ( USB2.0 interface) | |||||||||
| SD | 1 (Compatible MMC/MS) | |||||||||
| CF | 1 | |||||||||
| RJ45 | Included(Network version only) | |||||||||
| 3G or WIFI Module | Included(Network version only) | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | AC100~240V 50 /60 HZ | |||||||||
| Maximum power consumption | 220W | |||||||||
| Standby power consumption | <5W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 85% | |||||||||
| Storage humidity | 85% | |||||||||
| Appearance | ||||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | Metal case SPCC | |||||||||
| Installation | wall-mounted or rack mounted | |||||||||
Detail Features
1. Video format:MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI
2. Audio format:Wave/MP3/WMA/AAC
3. Image format:JPEG/BMP/TIFF/PNG/GIF
4. Image resolution:480P/720P
5. Play mode:Power on, single card auto loop play;classified files auto loop play; multi cards
6. auto loop display etc
7. Time:year/month/day/week/h/m/s, in the top right corner (open and close optional)
8. Timing open & close:Per day 5 times, 7 days a week, free time
9. Timing play:7 days a week, free set the play program everyday
10. Alarm clock:Set 5 alarms one day, once ring the alarm, play the specified program
11. OTG:Support copy, delete, remove, rename, build new file among different cards
12. Running subtitle:Can set the play location, word size, color and back-color
13. Log files:Record the play time (concise to second), the play contents
14. Angle subscript display function:Can set the play time, just support BMP picture with biggest
resolution 160*90
17. Memory function:Power off, memory the time of the play; power on, play from the time, not
from beginning
18. Key and lock function:Use the remote controller before input the keyword
19. Encrypt CF card:Play the contents in the CF card before input the keyword
20. Sound volume:Can set the volume of sound in the different time
21. Storage card lock:Have a anti-theft lock in the case, equip 2 sets key
22. Other function:Customized
23. Upgrade software:Just put the upgrade file in the storage cards
